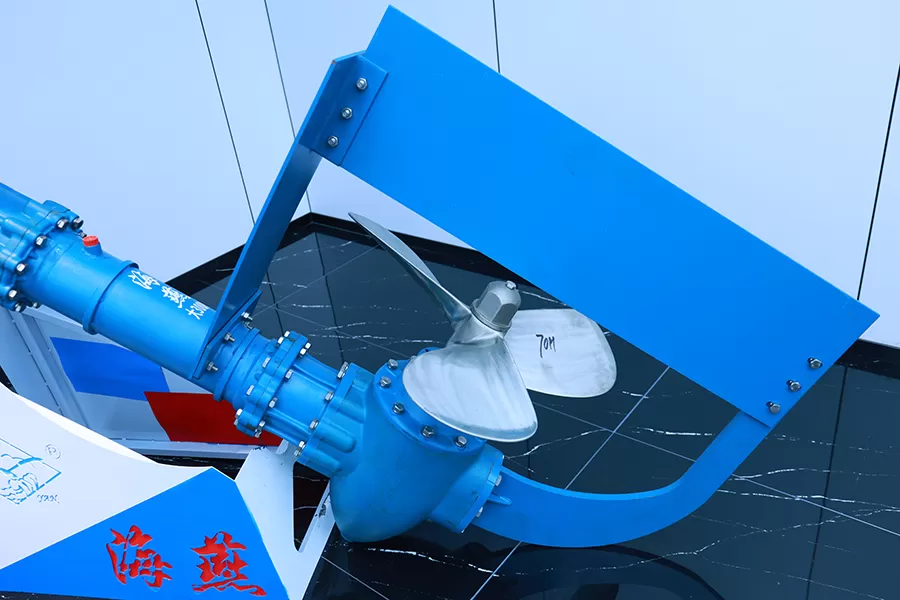

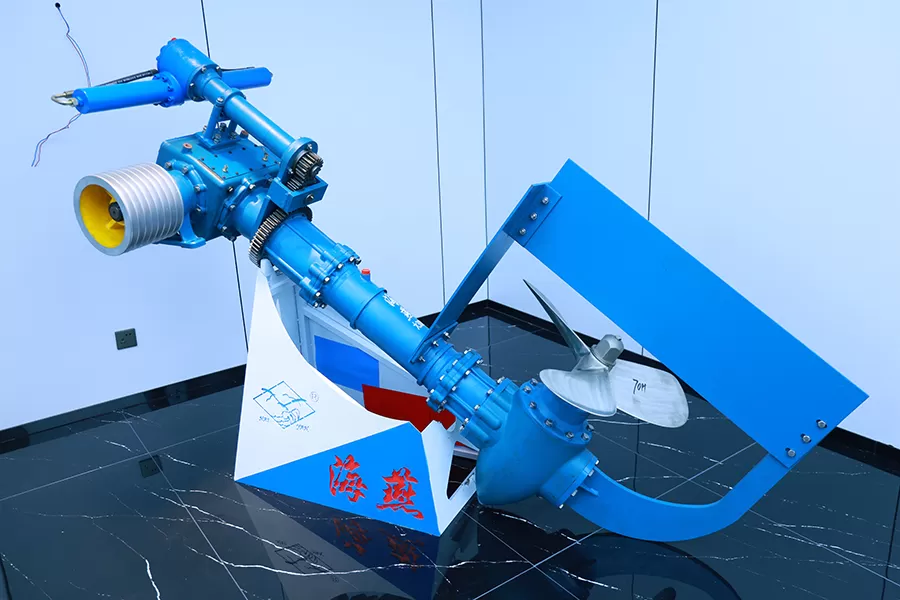

Haiyan Large Power Rudder Propeller

Brief Introduction

Name of products: Haiyan Large Power Rudder Propeller

Products Series: Hydraulic Landing Series

Model: 7GJ300

Material: Cast Steel、Cast Iron or Stainless Steel,etc.

Specification: 1.0-2.8Meters

Supporting Engine Power: 200-350P

Advantage:

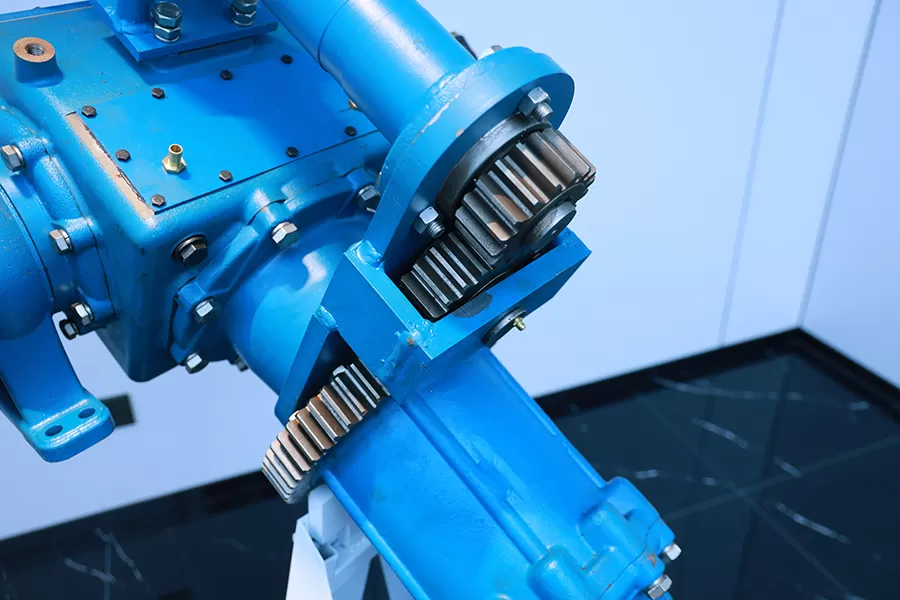

1. The gear is made of 20GrMnTi Material and Carburized.

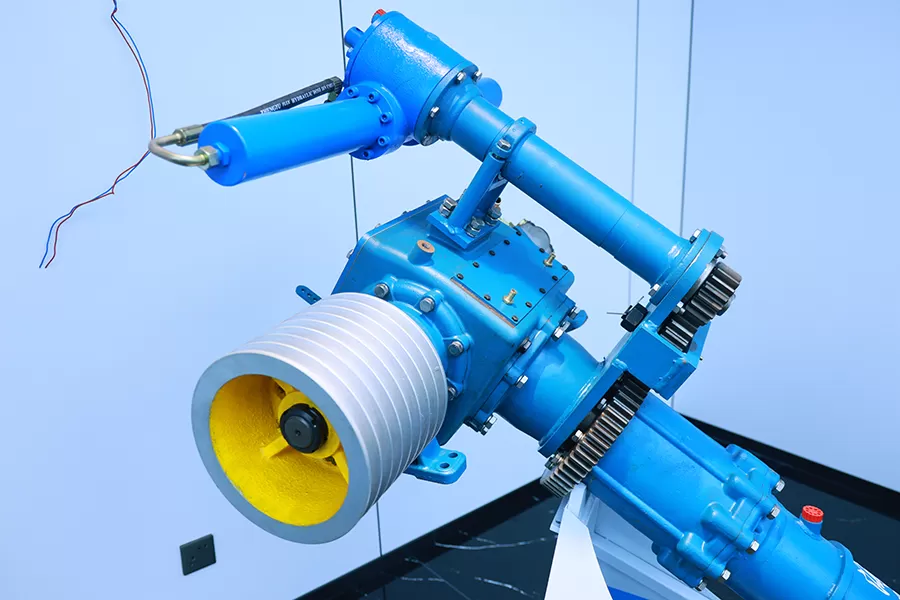

2. Adopt Swing Cylinder Drive,Large Driving Force,More stable drive,Longer Life.

3. The lower box adopts honeycomb sealing structure, anti-wrapping rope.

4. Using the new structural Bearing,Bearing axial、Radial and tilting load capacity is stronger,prolong the service life.

5. Propeller steering,ship operation is more flexible and accurate.

HAIYAN Marine Outboard Motors: High-Efficiency Propulsion for Small Boats

Efficiency is a core feature of HAIYAN outboard motors, which are designed to maximize performance while minimizing energy consumption. These motors incorporate a top and bottom reduction gearbox, a tubular body assembly, and a high-performance propeller, all designed to deliver smooth, consistent propulsion. This makes them an ideal choice for users who need to balance speed and control with fuel efficiency.

The dual-stage bevel gear system in the reduction boxes ensures that the engine’s power is transmitted with minimal energy loss, resulting in higher speed capabilities without compromising on fuel economy. This efficiency is particularly important for both recreational users looking to extend their time on the water and commercial operators aiming to reduce operational costs.

The propeller is made from durable, corrosion-resistant materials that are designed to withstand the rigors of marine environments. Its aerodynamic shape reduces drag, further enhancing the motor’s overall efficiency. Whether cutting through waves or cruising on calm waters, the HAIYAN outboard motor provides reliable propulsion while keeping fuel consumption low and minimizing environmental impact.
